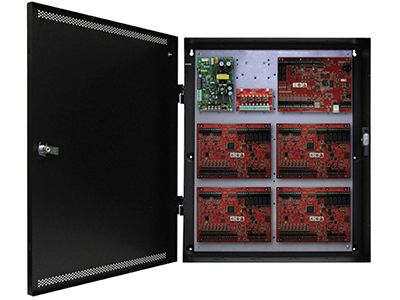

LifeSafety Power 16 Door Enclosure.

Features & Benefits

  • Guarantees uniform installations across an enterprise
  • Pre-installed wire harness for panel power, lock control, faults and tamper switch
  • Point to point wiring; labeled, color coded, twisted pair, shielded communication
  • Tie wrap cable management
  • Managed systems monitor power, batteries and sixteen outputs
  • UL294, ULC S319 joint LSP / Mercury integrated listing

Product Description

These ProWire Unified Power wall mount models are single and dual voltage access power systems, precision wired for Mercury controllers. ProWire enables the specification and installation of standardized access power equipment across an enterprise for uniform operation, maintenance and servicing.

The C8 or M8 control modules provide sixteen access control inputs capable of voltage or dry contact activation, and sixteen outputs programmable for fail-safe/fail-secure operation at either 12 or 24 VDC and controlled by the power supply fire alarm interface. The D8 modules provide sixteen auxiliary outputs. In dual voltage systems, each output is configurable for 12 or 24VDC operation.

ProWire Unified Power enclosures are painted steel with removable backplate, lock, keys and and tamper switch and come 100% factory tested – ready for final panel installation and field wire termination.
